Accommodate More Orders With the Use of Big Joe J1 Joey

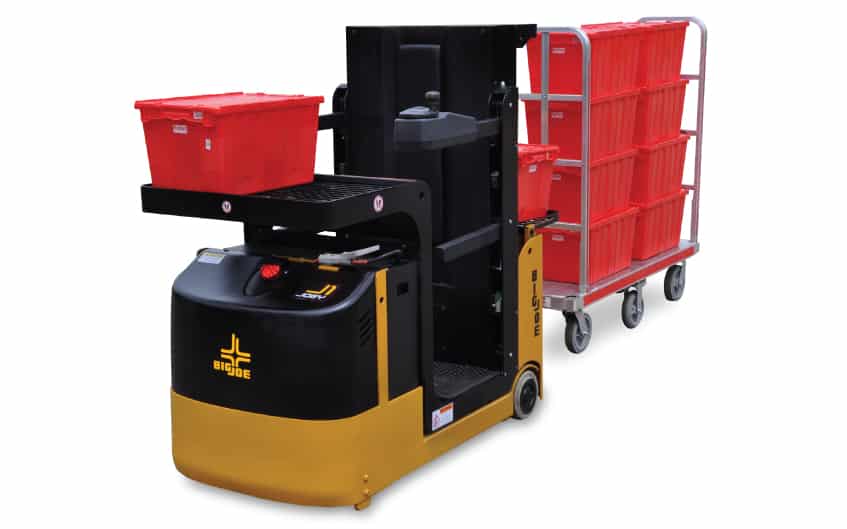

Big Joe J1 Joey

eCommerce Order Pickers

The Big Joe J1 Joey is the multipurpose solution vehicle that enables your operation to become more efficient handling products and materials throughout your facility. These incredible order pickers allow your operators to pull orders 10X FASTER than manual ladders or carts. Now, one operator can do the work of 5 people for picking orders.

  • Max Pick Height: 20 Feet
  • Capacity: 1,000 LBS
  • Multi-Purpose Solution Vehicle
  • AGM maintenance-free battery
  • Operates in 4-foot aisle
  • Ideal for quick picking

Ready for work?

Ready for operation optimization.

The J1 "JOEY" Task Support Vehicle combines attributes of elevating work platforms, order pickers and tuggers in a compact vehicle design. The unique design of the Joey is protected by the US patent office D730,614, D733,389, D733,390, and 9,440,830 Developed as an alternative to rolling ladders or other larger equipment, the Joey can support tasks from general overhead maintenance to order picking. The Joey can elevate an operator up to as much as 192” from the floor, turn around in as little as 72", and can be driven at height to move from task to task. Travel is provided by a high efficiency AC drive motor that can be programmed through the onboard LCD dash, while power comes from a 224AH AGM maintenance free battery pack that supports opportunity charging from a standard 120v outlet or an industrial battery and external charger which is required on the J1-192.

Working Smart

The engineers who designed the J1 Joey meticulously crafted its on-board display to give the operator full control of their travel settings and diagnostics. Your operation needs total customization and this feature gives you that ability.

Efficient

The J1 Joey Order Picker streamlines your entire picking process. Now, go from rack to aisle to dock in one motion. You'll never have to transfer material from one type of equipment to another again!

Intuitive Steering

The best warehouses optimize their space. With that in mind, your space to move around in aisles may be tight. But fear not: the J1 Joey moves effortlessly in narrow aisles and busy docks.

a Match made for your Warehouse

Visit some of your local industry leaders and you're likely to see a whole fleet of J1 Joeys flying around their warehouse. That is because these order pickers optimize the order picking process like never before, and they are easier and safer to manage than the traditional rolling ladder.

Full Control

The control buttons and movement switches on the J1 Joey allow for natural manipulation and contour excellently with the operator's hand. Because comfortable operators are productive and safe operators.

Equipment with guts

Every little wire, bolt, and part of the J1 Joey is built to last. These units can take a beating and keep on working. Plus, they have convenient motor access so they can be maintained easily and quickly.

Built for the task

When was the last time you went up on a rolling ladder and came down with nearly a full pallet-worth of material? Never! But that is exactly what you can do with the J1 Joey. The picking tray options TOTAL WAREHOUSE provides allow your company to pick the perfect amount of material. Then your operator is back on the move, headed to and from the dock.

Overview

What if…

"It would change retail operations."

there was a heavy duty industrial vehicle that was compact, nimble, and refined enough to support a retail sales floor?

  • Carries up to 1,000lbs to 14’ and can complete a full turn in a 64” Aisle.
  • Continuous duty cycle of over 4.5 hours on a single charge
  • AC drive reduces regular maintenance and overall operating costs
  • Power steering for easy accurate vehicle control and placement
  • Integral AGM battery pack outlasts, outperforms and supports 120v charging.
  • Rethink your operation, eliminate stock ladders and improve productivity

Still not convinced?

Let us help you decide.

The warehouse experts at TOTAL WAREHOUSE have decades of experience with every type of industry and operation. We know the exact equipment and storage system combination needed to increase your output. Give us a call and let's grow your business together.

Contact us

specifications

MakeBig Joe
modelJ1 Joey
TypeOrder picker / Stock Selector / Stock Chaser
Power24 volt AC electric with Zapi transistor control
Maximum Capacity1000 LBS
Max. Lift HeightOperator platform raises to 126" /162" /192"
Collapsed Height62.6" / 82" / 83"
Vehicle Dimensions59" Length x 26" Width x 62.6 Height
Turning Radiusas low as 52.5"
Battery Capacity224AH AGM pack / Industrial (req on J1-192)
ChargerIntegral 120v in pack / Industrial (req on J1-192)
Max Speedup to 5 MPH
Minimum turn aisle72"

Big Joe J1 Joey

Stock Selector / Order picker in action!

Lease Rates

WE CAN DELIVER A J1 JOEY TODAY!

Daily

Starting At

$110

Reliability without liability

24/7 availability

  • TOTAL care eligible
  • Plenty in Stock at all TW Locations
  • Various Lift Heights Available

May vary upon evaluation

Reserve

Weekly

Starting At

$250

Why buy when you can rent?

24/7 availability

  • TOTAL care eligible
  • Plenty in Stock at all TW Locations
  • Various Lift Heights Available

May vary upon evaluation

Reserve

Monthly

Starting At

$650

Best value of savings

24/7 availability

  • TOTAL care eligible
  • Plenty in Stock at all TW Locations
  • Various Lift Heights Available

May vary upon evaluation

Reserve

Long term

Starting At

Call for quote

A plan built custom for your needs

24/7 availability

  • TOTAL care eligible
  • Plenty in Stock at all TW Locations
  • Various Lift Heights Available

May vary upon evaluation

Reserve
Contact Us

frequently asked questions

answer

The Big Joe J1-Joey can operate in 4-foot aisles.

answer

An operator in a Big Joe J1-Joey can pick items up to 20-feet high.

answer

Yes, OSHA codes 1910.23(B)12&13 state that it is virtually impossible to carry stock up and down a ladder without committing a safety violation. With a Joey, you are able to use both hands to pick and place stock without jeopardizing your safety.

answer

Yes, there are several types of attachments that can be added to the J1-Joey to make it perfect for your operation. Ask us about extended load trays, blue lights, rear-view cameras... or anything else you may like to have on your unit.

answer

Yes there is! You'll want to head over to our J2-Joey page. Click here to explore the J2-Joey.


Finding the best shipping rates for your warehouse equipment is not easy. There are dozens of factors that must be considered to determine your final shipping rate. But fear not! TOTAL WAREHOUSE has teamed up with every major and local shipping company to streamline your delivery experience. The moment you submit a Q-COMMERCE quote request, one of our logistics experts will find you the best shipping rate in minutes. Then we email you a formal quote –including those optimized shipping rates and any current discounts– for your approval. Typically, you will receive your quote email within 15 minutes during regular business hours. That is how we optimize your buying experience.

quantity discount
ModelLift HeightCollapsed HeightMax Pick HeightBuy 1Buy 3Buy 5+my quantity
J1-126126"62.6"203"$13,890$13,790$13,490 [enh_ajax_add_to_cart_button product=7641 variation=7993 title=none ]
J1-162162"83.5"239"$14,890$14,790$14,490 [enh_ajax_add_to_cart_button product=7641 variation=7994 title=none ]
J1-192192"83.5"269"$17,900$17,790$17,490 [enh_ajax_add_to_cart_button product=7641 variation=7995 title=none ]
