Wire Decking

for Pallet Rack systems

Welded Wire Decking makes inventory easier to see and handle, reduces fire hazard, maximizes, and simplifies product handling. Inventory stays clean, neat and organized. Here’s Strength with economy, easy to install and no maintenance.

  • All varieties & sizes available
  • Improves natural light and airflow
  • Sprinkler density Enhancement
  • Easy & Secure Install
  • Galvanize Finish Available
  • Powder Coated Finish

Special Sizes & Capacities

Built for your exact needs

All involved components must work in unison for your pallet rack system to operate at full efficiency. Worker safety and your bottom line are on the line. With that in mind, you need to consider how your material will actually be stored on the rack. Wire decking is just as important as uprights and cross beams for your material to be handled properly, safely, and optimized for profit. Warehouse managers across every industry love using wire decking because it allows light to shine down on their material, improving equipment operator visibility and pick speed.

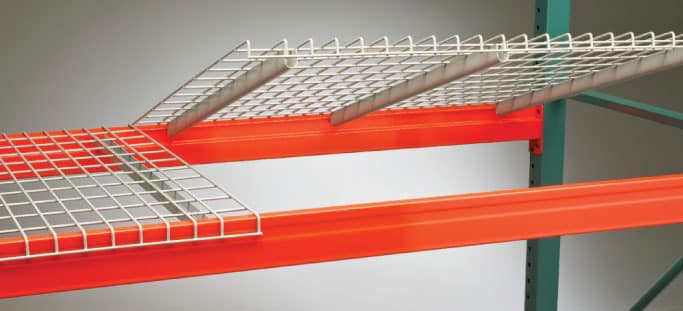

standard wire decking

Design with standard support channels to accomodate standard 1 1/2" or 1 5/8" step beams.

flared wire decking

Waterfall design with flared support channels to accomodate box and structural type beams.

inside waterfall wire decking

Wire is hidden inside the step leaves beam faces unobstructed.

flush wire decking

Flat mesh ends even with the top of beam with no bend.

inverted channel

Decking with the support channels inverted for food storage and other clean applications.

upturned waterfall

Decking with the rear waterfall turned up to serve as a backstop to prevent cartons from being pushed off the back of the back.

We have it all

our customers rely on us to provide them with many quick, and thorough services. We are able to provide such great services by constantly keeping our inventory stocked with every type of equipment and warehouse racking. We have tons of new and used racking material ready to ship right away!

operation optimization

Real estate prices continue to soar. You need to increase output and expanding your warehouse size isn't an option. Answer: Expand Up with the perfect pallet racking system for your exact needs and decrease your aisle width. Stay just as productive with TOTAL WAREHOUSE's incredible VNA equipment.

Overview

Wire Deck

Fire Safety Code Compliance

Wire decking saves you money in many different ways. For example, wire decking improves warehouse safety because its open channels allow fire sprinklers to reach every row of material in the event of a fire. Along with being a huge safety improvement, having wire decking can improve your insurance rates, saving you a ton of cash. Also, wire decking is preferred for fire code compliance.

DID YOU KNOW The fire code in many states will not allow a rack to have solid decking above 5-foot, 9-inches. Are you compliant? We can help. Give us a call!

  • 833-868-2500

Still not convinced?

Let us help you decide.

The warehouse experts at TOTAL WAREHOUSE have decades of experience with every type of industry and operation. We know the exact equipment and storage system combination needed to increase your output. Give us a call and let's grow your business together.

Contact us

Wire Decking

Welded Wire Decking makes inventory easier to see and handle, reduces fire hazard, maximizes, and simplifies product handling. Inventory stays clean, neat and organized. Here’s Strength with economy, easy to install and no maintenance.

  • Starting at $15.00 each
  • Powder Coated Finish
  • Galvanize Finish Available
  • Varieties of sizes are available
  • Makes bulk storage fire code compatible
  • Wire decks permit light, air and sprinkler penetration
  • Easy install by simply dropping them into place over beams
  • Special Sizes and Capacities available
  • Engineered for your specific requirements

Before / After

Unbelievable warehouse transformations

Lease Rates

Starting At

24/7 availability

May vary upon evaluation

Reserve
Contact Us

How to Order Wire Decking

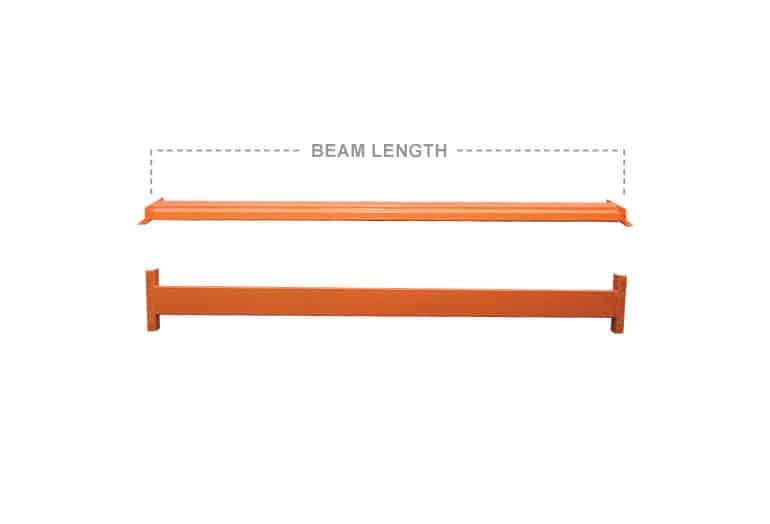

Determine the beam length measurement that the decks are going to be installed on by measuring the inside edge of the beam connector where it would sit flush with the side of the upright frame. Note that you want to use the measurement that is similar to your desired pallet racking bay widths.

Example: A 96″ beam will have a measurement from the inside edges of the beam connectors that is generally within 1/16″ or so of what the desired bay dimension is. You do not want to measure between the furthest outside edges of the beam connectors or the measurement will be too long.

• 96″ beams require Two (2) 46″ wide wire decks
• 108″ beams require Two (2) 52″ wide wire decks
• 120″ beams require Two(2) 58″ wide wire decks
• 144″ beams require Three (3) 46″ wide wire decks

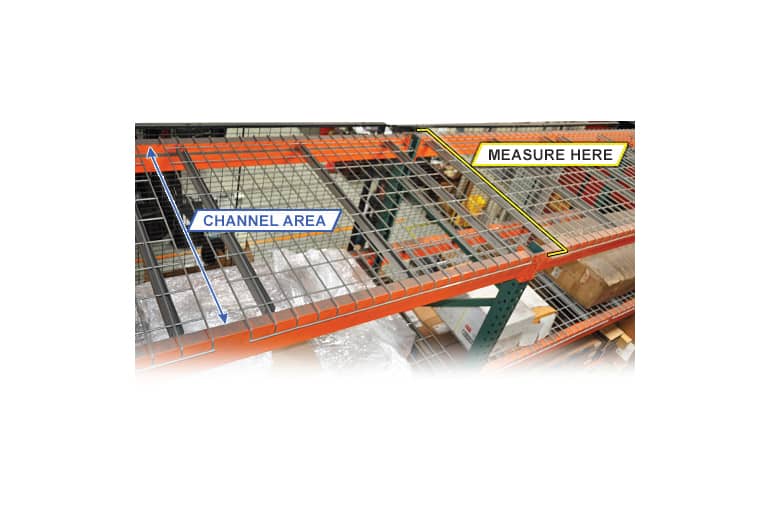

Next you want to determine the upright depth of the rack system that the decks are being used in. Example: 42″ deep upright would require a wire mesh deck that is 42″ Deep. If you are ordering wire decks to go with your existing pallet rack uprights, then you will need confirm that the measurement between the steps of your existing pallet rack beams will accommodate a channel lengths of the new decks.

• For 36″ deep wire decks:
Common channel lengths are between 32-1/4″ and 32-3/8″
• For 42″ deep wire decks:
Common channel lengths are between 38-1/4″ and 38-3/8″
• For 48″ deep wire decks:
Common channel lengths are between 44-1/4″ and 44-3/8″
