Lift-Rite

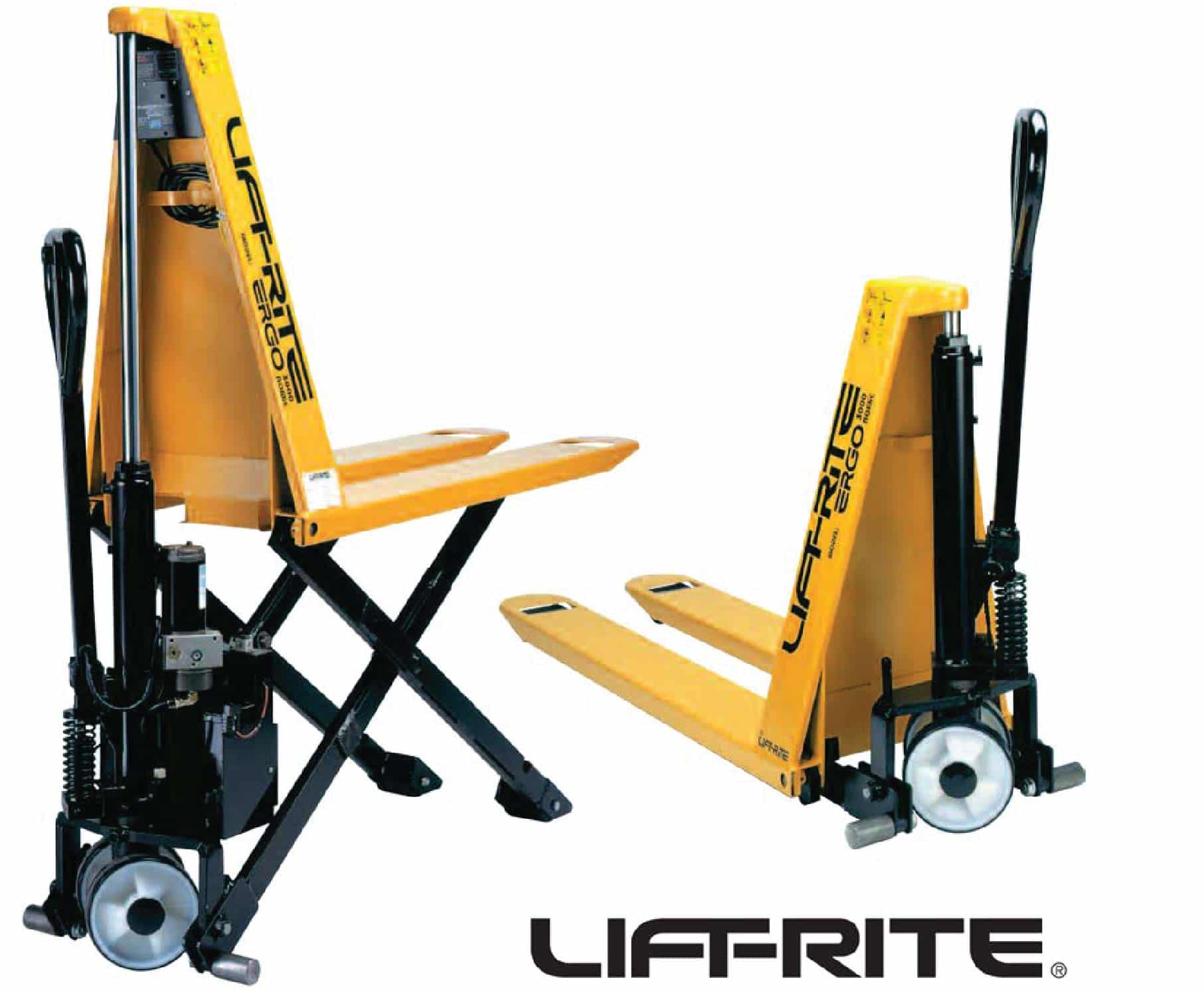

Ergo Lift & Skid lifter

Ergo-Lift is the Missing Link between a Lift Table, a Pallet Truck and a Forklift. There will be an immediate increase in productivity while reducing the chance of injury on the job. Costs will reduce as a result of on-going Ergonomic. The Electric powered scissor lift table is designed for applications where raising and lowering are more frequent. The Manual pump lift table features manual Quick-Lift with easy positioning for a wide variety of applications.

  • Capacity: 3,000 lbs
  • Fork Length: 48 inches
  • Frame Width: 20.50 inches
  • Fork Width: 7.00 inches
  • Low Height: 3.25 inches
  • Raised Height: 31.50 inches
  • Wheel Diameter: 8.00 inches
  • Roller Diameter: 3.00 inches
  • Weight: 430 lbs

Overview

Still not convinced?

Let us help you decide.

The warehouse experts at TOTAL WAREHOUSE have decades of experience with every type of industry and operation. We know the exact equipment and storage system combination needed to increase your output. Give us a call and let's grow your business together.

Contact us

Comfort Never Worked So Hard

Work ergonomically and comfortably

With its portable, ergonomic load positioning and load lifting, the Ergo-Lift helps you to work ergonomically and comfortably. Whether you prefer the electric or manual truck, each one is compatible with open bottom pallets/ skids so your workflow keeps moving.

  • Both models come with a quick-lift feature to reduce pump strokes.
  • The electric model has a push button operated lift.
  • The electric model can easily maneuver in a lowered position and lock itself in place to remain stationary.
  • It also comes with a deep cycle battery and built-in charger.

Lease Rates

Starting At

24/7 availability

May vary upon evaluation

Reserve
Contact Us

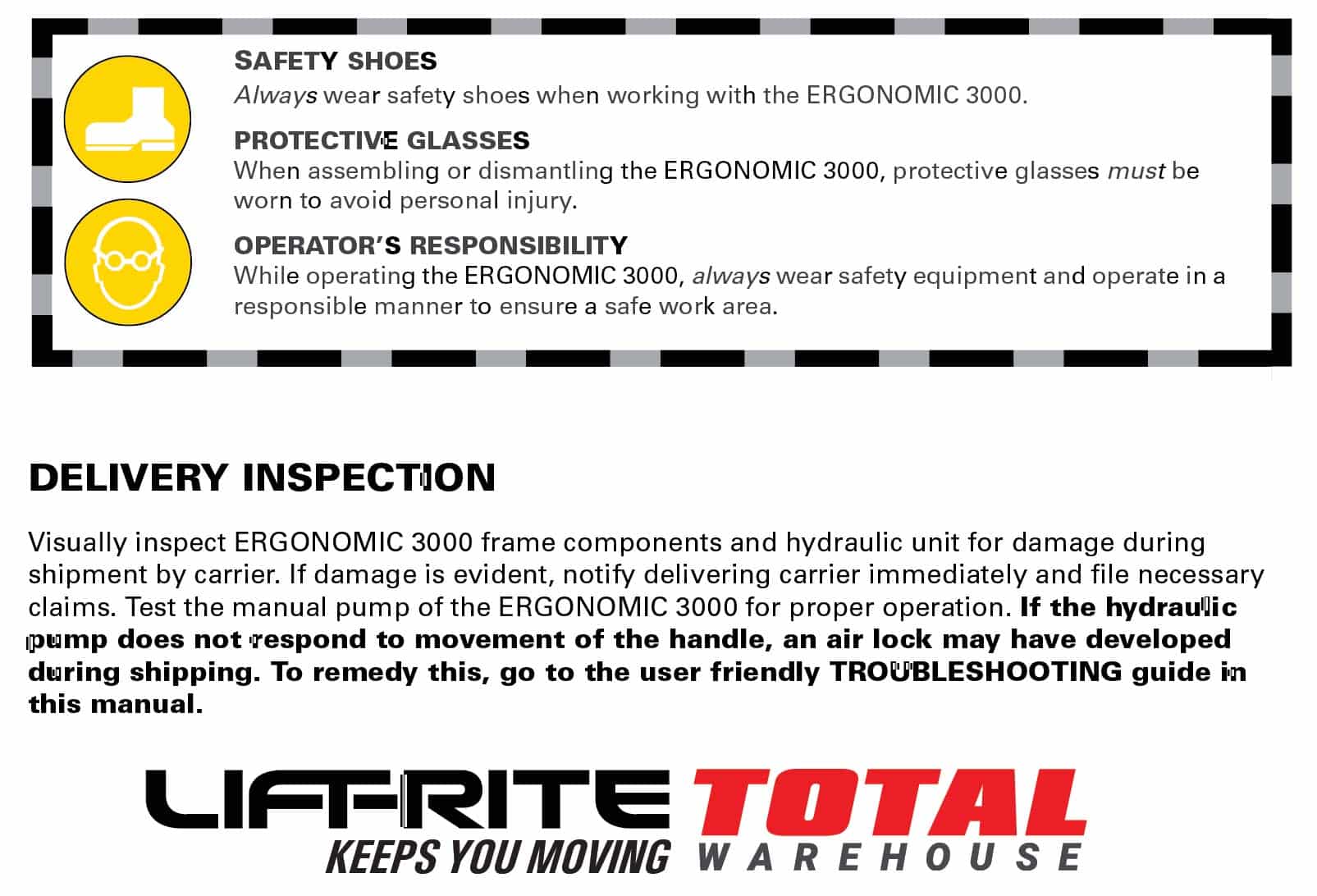

Safety

Do not operate this ERGONOMIC 3000 truck unless you are authorized and trained to do so.
• Never overload your ERGONOMIC 3000 truck. Stay within its rated capacity.
• Do not operate this truck if damaged or not in proper working order.
• Distribute the load evenly on the forks. Do not concentrate loads at one point or load one fork more than the other.
• When the load impairs visibility, the ERGONOMIC 3000 truck should be pulled and not pushed.
• Always look where you are operating. Keep a clear view.
• Only handle loads on flat level surfaces. Do not use a loaded truck on inclines or declines.
• Never carry passengers.

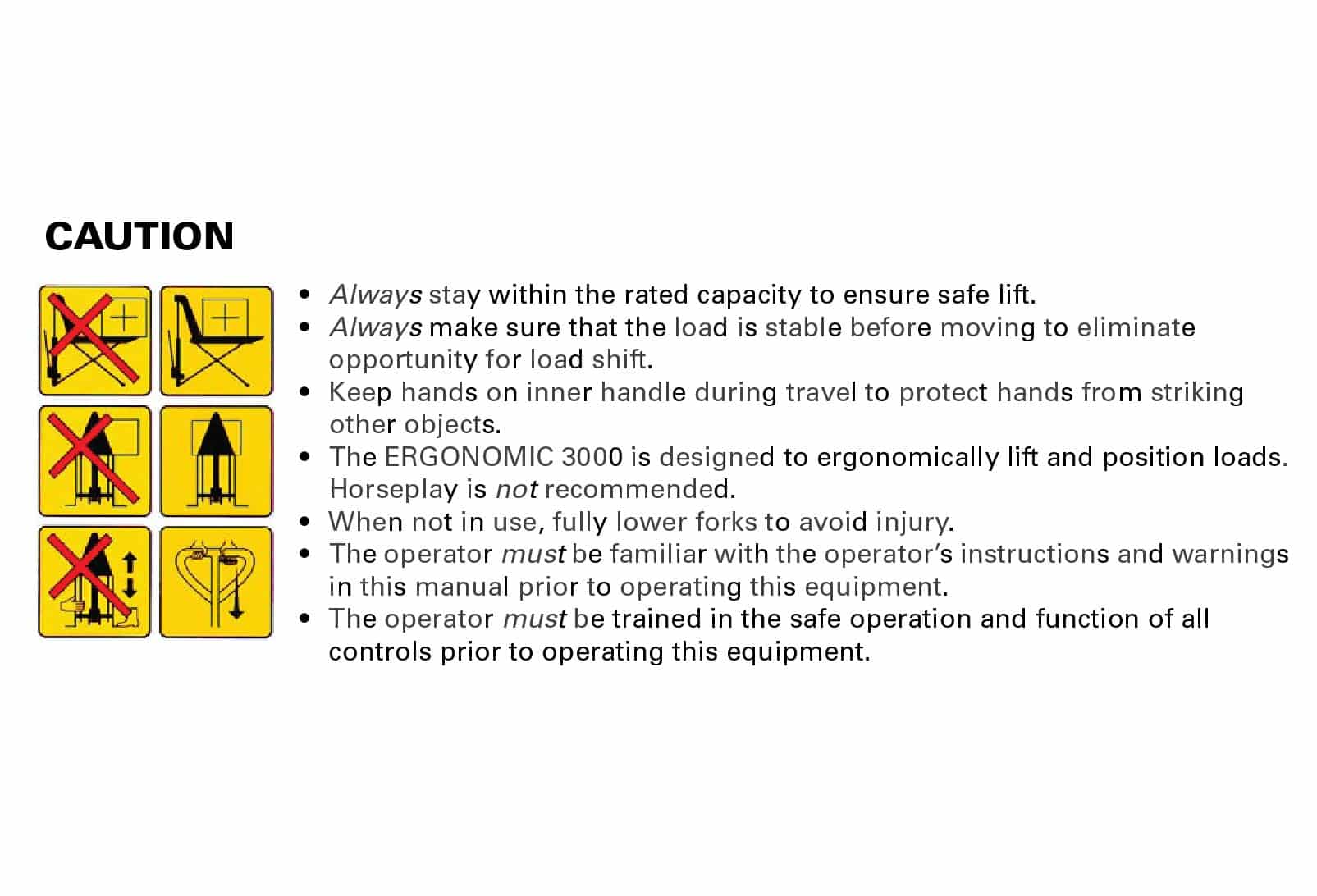

Caution

Do not place the center of your load beyond the load center of the ERGONOMIC 3000.
• Never put your feet, hands, or any other body part under the scissors or frame assembly.
• Always yield the right of way to pedestrians.
• Do not allow the ERGONOMIC 3000 to drop from one level to another. Even a drop of 1 in. (25 mm) more
than doubles the effective load momentarily and results in a loading that can bend or break components.
• Move loads only with the ERGONOMIC 3000 in its lowest position.
• Always make sure that the load is stable before moving to eliminate the opportunity for load shift.
• Use extreme care when rounding corners. Too fast a speed could cause an ERGONOMIC 3000 truck to tip. If
loaded, the load could shift and fall.
• When not in use, fully lower the forks.
• Electric ERGONOMIC 3000 must be charged in a well ventilated area. Always use the charger provided.
Never use jumper cables as these can cause sparks that could ignite the explosive gases normally released
by the battery during charging.
• Stabilizer engages to limit movement in raised position and should not be tampered with.

Ergo & Lift Tables

» Capacity: 3,000 LBS
» Lowered Height: 3″
» Raised Height: 31.5″

ModelPowerLift-Rite ModelWidth x LengthLength
ERGOT-27X47MManualEM11LY00-00027"48"
ERGOT-21X47MManualEM21LY00-00020.5"48"
ERGOT-27X47EElectricEE11LY00-00027"48"
ERGOT-21X47EElectricEE21LY00-00020.5"48"
