Lift-Rite Titan Premier

Standard Hand Pallet Trucks

  • 5,500 LBS Capacity
  • 2-Year Pump Warranty
  • Hand control Lift / Lower
  • Polyurethane Wheels
  • 210º Steering
  • Precision Welded Pump
  • Reinforced Fork Design
  • Effortless Pallet Entry / Exit

Light Duty.

Heavy Muscle.

• High quality wheels, rollers and ball bearings
• Loop design for comfort and safety
• New design improves performance and reliability
• Fork tip design provides smooth pallet transition
• The unit is equipped with rugged black nylon wheels and steel load rollers
• Fingertip controls provide convenient access to lift, lower and keep the truck in neutral
• Get more done with less. The simplified pumps has fewer parts
• Durable powder coat paint finish

Overview

Still not convinced?

Let us help you decide.

The warehouse experts at TOTAL WAREHOUSE have decades of experience with every type of industry and operation. We know the exact equipment and storage system combination needed to increase your output. Give us a call and let's grow your business together.

Contact us

Keeps You Moving

Easier Steering, Smooth Travel

  • High quality wheels, rollers and ball bearings
  • Loop design for comfort and safety
  • New design improves performance and reliability
  • Fork tip design provides smooth pallet transition
  • The unit is equipped with rugged black nylon wheels and steel load rollers
  • Fingertip controls provide convenient access to lift, lower and keep the truck in neutral
  • Get more done with less. The simplified pumps has fewer parts
  • Durable powder coat paint finish

specifications

Manufacturer Lift-Rite
Series Titan Hand Pallet Truck - Premier Series
Chassis Steel
Roller suspension Steel and cast Iron
Bushing Brass
Grease fittings Steel
Rollers Nylon, polyurethane, steel
Hydraulic body Cast iron
Thrust plate Cast iron
Handle Steel
Wheel Nylon, polyurethane, steel
Hydraulic oil Disposal in accordance with local regulations
Assembly parts Steel, brass, nylon

Before / After

Unbelievable warehouse transformations

Lease Rates

Rental Rate Product Title

Rental Rate Category Title

Starting At

Rental Rate Category Starting Price

Rental Rate Category Short Description

24/7 availability

  • Rental Rate Inclusion Item 1
  • Rental Rate Inclusion Item 2
  • Rental Rate Inclusion Item 3
  • Rental Rate Inclusion Item 4

May vary upon evaluation

Reserve
Contact Us

Lift-Rite Hand Pallet Trucks

STANDARD TITAN SERIES Lift-Rite Model Capacity Size W x L Lowered Height Raised Height PRICE
LCR55-A48 (Most Popular) L511LY00-X00 5,500 LBS 27in. x 48in. 3" 7.75" $474
LCR55-A42 L512LY00-X00 5,500 LBS 27in. x 42in. 3" 7.75" $481
LCR55-A36 L513LY00-X00 5,500 LBS 27in. x 36in. 3" 7.75" $481
LCR55-B42 L522LY00-X00 5,500 LBS 20.5in. x 42in 3" 7.75" $481
LCR55-B48 L521LY00-X00 5,500 LBS 20.5in. x 48in. 3" 7.75" $481
UNIVERSAL AND 4 WAY SERIES
LCU4W-33X48 5,000 LBS 33in. x 48in. 1.75" 6.75" $751
LCUUF-29x48 5,000 LBS 29in. x 48in. 1.75" 6.75" $735

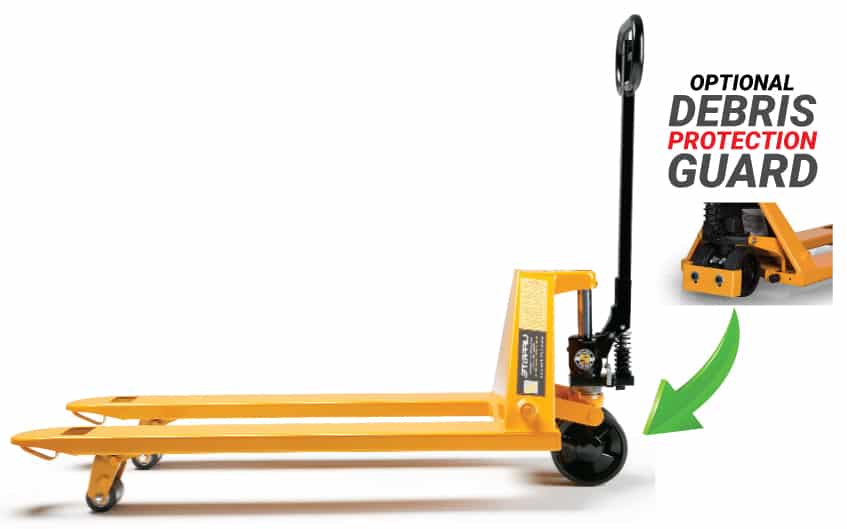

Lift-Rite Foot / Debris Protection Guard

Many in stock and ready to ship!

This unique attachment diverts debris away from the steer tires on a hand pallet truck, allowing smoother, easier, more reliable travel in a variety of environments. By preventing foreign objects from getting under the steer tires of hand pallet trucks, Lift-Rite's exclusive Debris Diverter delivers more consistent, reliable travel for easier operation and more precise, predictable travel.
* Transferable between trucks for greater flexibility and cost efficiency.
* Unique design allows for uninterrupted travel over various surfaces and inclines.
* This attachment is available for virtually any pallet jack in your fleet. It quickly and easily attaches to most brands of hand pallet trucks

Operating Instruction

(Read and understand prior to using this product)

The neutral position disengages the pump from the lifting mechanism. This frees the handle, which makes pulling loads much easier. In addition, the pump is not subject to shock pressures while the truck is in motion.

Safety Procedures

Never overload your hand pallet truck. Stay within rated capacity.

● Do not operate this truck if damaged or not in proper working order.
● Distribute the load evenly on the forks, do not concentrate loads at one point or load one fork more than the other.
● Only handle loads on flat level surfaces. Do not use this truck with load on inclines or declines.
● Never put your feet, hands or any other body part under the frame assembly.
● Do not allow your hand pallet truck to drop from one level to another. Even a drop of 1” (25mm) more than doubles the effective load momentarily and results in a “Shock” which can bend or break components.
● Always ensure load is stable before moving to eliminate opportunity for load shift.
● When not in use, lower forks completely to avoid injury.

frequently asked questions

answer

27" wide x 48" long pallet jacks are the most common size. 27" wide x 42" long pallet jacks are also very popular.

answer

The beverage handling industry usually uses a 21" fork width and a length that matches your exact application. There are also jacks as narrow as 16" to fit your beverage pallet handling needs.

answer

The longest hand pallet jack we offer is 96" long.

answer

The key is to keep the pump well maintained. TOTAL WAREHOUSE offers pallet jack maintenance and even regular preventative maintenance programs to keep your pallet jacks and other equipment operating at 100%.

answer

Yes, TOTAL WAREHOUSE offers an industry-leading 2-year pump warranty on all Lift-Rite Pallet Jacks.

Titan Series Hand Pallet Jack

Lift-Rite Model #CapacityWidthLengthBuy 1Buy 3Buy 10+my quantity
L511LY00-X00 (Most Popular)5,500 LBS27"48"$474$469$461
L512LY00-X005,500 LBS27"42"$479$469$461
L513LY00-X00 5,500 LBS27"36"$479$469$461
L521LY00-X00 5,500 LBS21"48"$487$477$467
L522LY00-X00 5,500 LBS21"42"$489$479$469
L523LY00-X00 5,500 LBS21"36"$489$479$469
L5B3LY00-X00 5,500 LBS16"36"$479$469$459

4-Way Universal Series Hand Pallet JackLIFT-RITE 4-way entry pallet jacks low profile ultra low profile all four directions convenient access to lift pallets

*Designed to enter pallets from all 4 sides

Fork Width: 6″ //  Wheels: Nylon  //  Rollers: Steel  //  Total Weight: 205 LBS

Lift-Rite Model #CapacityLowered HeightRaised HeightWidthLengthBuy 1Buy 3buy 10+my quantity
MWK1LY00-0005,000 LBS2"6.75"33"48"$898$889$879
UWK1LY00-0005,000 LBS1.75"6.5"3348"$829$819$809

Add Pallet Jack Load Backrest

Pallet HeightOur Pricemy quantity
Lift-Rite Load Back Rest48"$165
Lift-Rite Load Back Rest90"$198

Safety Foot Diverter

This unique attachment diverts debris away from the steer tires on a hand pallet truck, allowing smoother, easier, more reliable travel in a variety of environments. By preventing foreign objects from getting under the steer tires of hand pallet trucks, Lift-Rite’s exclusive Debris Diverter delivers more consistent, reliable travel for easier operation and more precise, predictable travel.

Our Pricemy quantity
$84
