Boost Performance and Service With the Titan 45 Low Profile Pallet Jack

Lift-Rite

Low Profile Hand Pallet Trucks

Titan M5 low profile pallet jack series is rated for a 5,000 lb. maximum load capacity and feature a one‐piece, leak‐proof cast hydraulic pump for reliable performance and convenient service.

  • 5,000 LBS Capacity
  • 2-Year Pump Warranty
  • Fork Width: 6.00 inches
  • Low Height: 2.00 inches
  • Raised Height: 6.75 inches
  • Wheel Diameter: 7.00 inches
  • Wheel Type: Nylon
  • Roller Diameter: 2.00 inches
  • Roller Type: Nylon
  • Weight: 175 lbs

Overview

Still not convinced?

Let us help you decide.

The warehouse experts at TOTAL WAREHOUSE have decades of experience with every type of industry and operation. We know the exact equipment and storage system combination needed to increase your output. Give us a call and let's grow your business together.

Contact us

Convenient Handling

For Low Clearance Openings

To help maximize customers’ warehouse space, Lift-Rite offers low profile manual pallet jack models suitable for pallets or skids with low clearance openings.

  • The low profile forks are perfect for moving pallets or skids with low clearance openings.
  • Comes with a durable and rugged leak-proof cast hydraulic pump.
  • The powder coated finish lets it withstand harsh environments
  • The unit is equipped with rugged black nylon wheels and steel load rollers
  • Three position fingertip control leve
  • One-piece leak-proof cast hydraulic pump
  • Durable powder coat finish

specifications

ManufacturerLift-Rite
ChassisSteel
Roller suspensionSteel and cast iron
BushingsBrass
Grease fittingsSteel
RollersNylon, polyurethane, steel
Hydraulic bodyCast iron
Thrust plateCast iron
HandleSteel
WheelNylon, polyurethane, steel
Hydraulic oilDisposal in accordance with local regulations
Assembly partsSteel, brass, nylon

Before / After

Unbelievable warehouse transformations

Lease Rates

Starting At

24/7 availability

May vary upon evaluation

Reserve
Contact Us

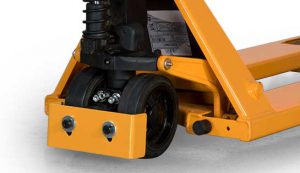

Lift-Rite Foot / Debris Protection Guard

Many in stock and ready to ship!

This unique attachment diverts debris away from the steer tires on a hand pallet truck, allowing smoother, easier, more reliable travel in a variety of environments. By preventing foreign objects from getting under the steer tires of hand pallet trucks, Lift-Rite's exclusive Debris Diverter delivers more consistent, reliable travel for easier operation and more precise, predictable travel.
* Transferable between trucks for greater flexibility and cost efficiency.
* Unique design allows for uninterrupted travel over various surfaces and inclines.
* This attachment is available for virtually any pallet jack in your fleet. It quickly and easily attaches to most brands of hand pallet trucks

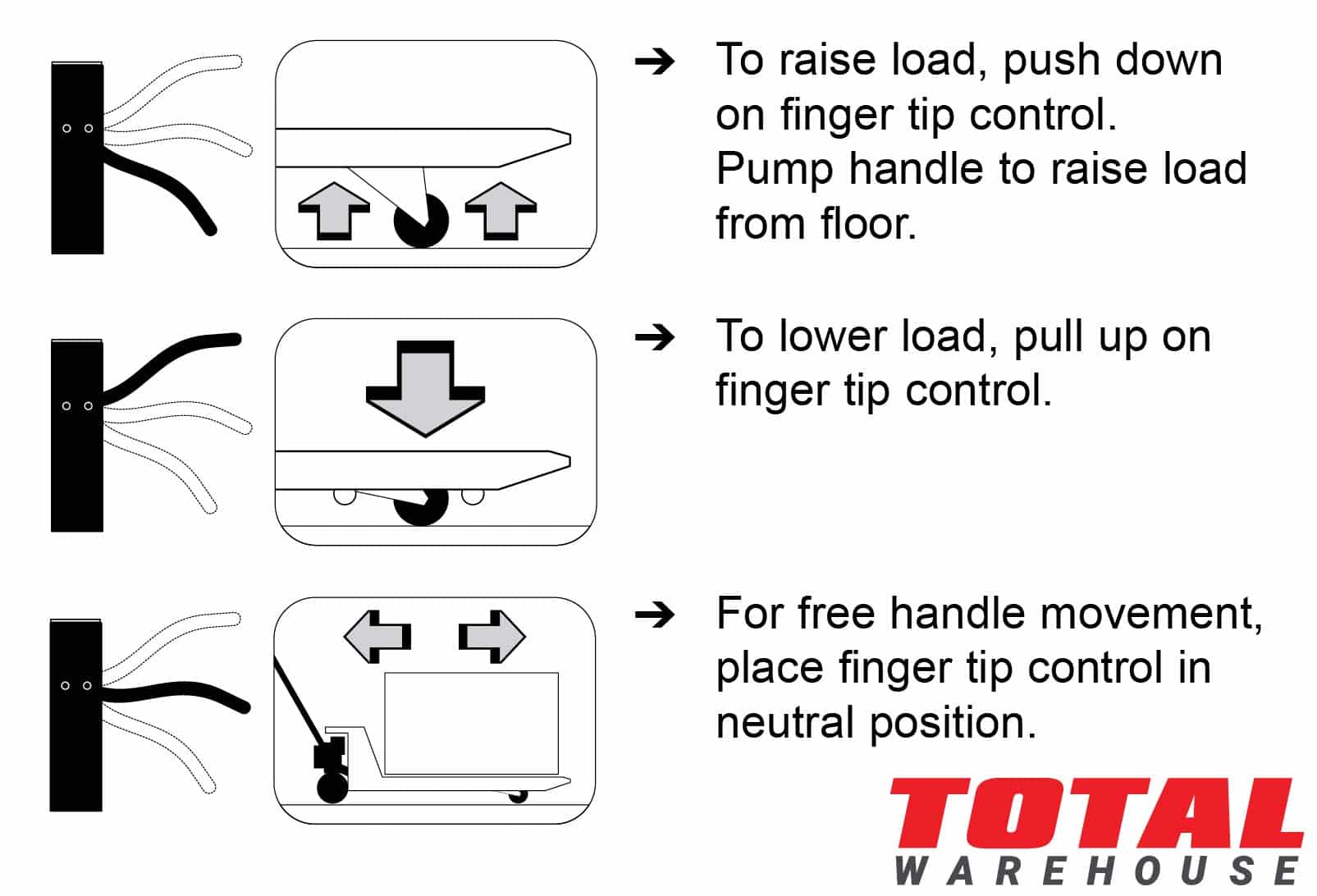

Operating Instruction

(Read and understand prior to using this product)

The neutral position disengages the pump from the lifting mechanism. This frees the handle, which makes pulling loads much easier. In addition, the pump is not subject to shock pressures while the truck is in motion.

Safety Procedures

Never overload your hand pallet truck. Stay within rated capacity.

● Do not operate this truck if damaged or not in proper working order.
● Distribute the load evenly on the forks, do not concentrate loads at one point or load one fork more than the other.
● Only handle loads on flat level surfaces. Do not use this truck with a load on inclines or declines.
● Never put your feet, hands or any other body part under the frame assembly.
● Do not allow your hand pallet truck to drop from one level to another. Even a drop of 1” (25mm) more than doubles the effective load momentarily and results in a “Shock” which can bend or brake components.
● Always ensure load is stable before moving to eliminate the opportunity for load shift.
● When not in use, lower forks completely to avoid injury.

frequently asked questions

Low Profile Hand Pallet Jack

LIFT-RITE MODELWIDTHLENGTHLowered HeightFork WidthBuy 1Buy 3Buy 10+my quantity
M511LY00-X0027"48"2"6"$819$809$799
M512LY00-X0027"42"2"6"$819$809$799
M513LY00-X0027"36"2"6"$829$819$809
M521LY00-X0021"48"2"6"$809$799$789
M522LY00-00021"42"2"6"$839$829$819
M523LY00-00021"36"2"6"$819$799$749
M5C3LY00-00018"36"2"6"$1149$1099$999

Ultra Low Profile Hand Pallet Jack

Lift-rite modelwidthLengthLowered HeightLift HeightBuy 1Buy 3Buy 10+my quantity
U511LY00-00027"48"1.75"6.75"$859$849$839
U512LY00-00027"42"1.75"6.75"$849$839$829
U513LY00-00027"36"1.75"6.75"$949$939$929
U51BLY00-00027"24"1.75"6.75"$949$939$929
U521LY00-00021"48"1.75"6.75"$869$849$839
U522LY00-00021"42"1.75"6.75"$859$849$829
U523LY00-00021"36"1.75"6.75"$879$869$859
U5F1LY00-00025"48"1.75"6.75"$1459$1449$1439

Add Pallet Jack Load Backrest

Pallet HeightOur Pricemy quantity
Lift-Rite Load Back Rest 48"$165
Lift-Rite Load Back Rest 90"$198

Safety Foot Diverter

This unique attachment diverts debris away from the steer tires on a hand pallet truck, allowing smoother, easier, more reliable travel in a variety of environments. By preventing foreign objects from getting under the steer tires of hand pallet trucks, Lift-Rite’s exclusive Debris Diverter delivers more consistent, reliable travel for easier operation and more precise, predictable travel.

Our Pricemy quantity
$84
