Linde Narrow Aisle Forklift

Linde 5195

Stand Up Reach Forklift

The Linde 5195 series double deep reach trucks are designed for fast handling in high rack warehouses to ensure extremely efficient operation. Equipped with a programmable control handle, adjustable steer tiller, and spacious operator compartment for all-day comfort. Linde's powered lowering drastically increases lowering speeds, reducing overall cycle times, extending run times, and pumping energy back into the battery.

  • Lifting Heights from 15 to 42’
  • Capacity: 3,500 to 4,500 lbs
  • Capacity Retention
  • Single or Double Reach Mast
  • Fixed Drive Motor Assembly
  • Side Stance Position
  • 12-14 Hour Run Times
  • Dual Polyurethane Caster Wheels

Narrow Aisle Forklift

Single and Double Deep Reach Truck

Designed for fast handling in high rack warehouses with narrow aisle applications to ensure extremely efficient operation.

  • Single & Double Reach
  • Narrow Aisle Applications
  • Lifting Heights: 15 to 42 feet
  • Capacity: 3,500 to 4,500 lbs
  • 12-14 Hour Run Times
Showroom

Performance

Smooth Maneuvering

Controlled acceleration, smooth maneuvering, and responsive braking are all active functions for travel including cushioned hydraulic functions. Variable steering resistance gives the reassuring feeling of maintaining perfect control of the truck while the truck status is continuously monitored on an informative display. At a glance, the operator can check steering angle, battery state, operating hours, motor temperature or servicing due.

Showroom

Design

Cutting-edge Technology

With over 70 years of expertise in designing and manufacturing reliable forklift trucks, Linde specializes in narrow aisle applications. AC components ensure controlled acceleration, smooth maneuvering, and responsive braking. Cushioned hydraulic functions and mast staging, along with power lowering, are included. The clear view overhead guard enhances operator comfort and visibility, eliminating the need to lean outside the truck frame to see loads at extended heights.

Showroom

Reliability

100% Durability

Before you take delivery of a new Linde truck, it has been through a series of product-proving tests through various applications to assure you of its dependability. Linde‘s AC and controllers run cooler, double-sealed electrical components, CAN bus communications result in very little moving parts. Confidence in the quality of the Reach Truck also allows us to offer a standard 3-year or 6000-hour warranty.

Showroom

Key Features

Linde’s Powered Lowering drastically increases lowering speeds, reducing overall cycle times and pumping energy back in to the battery. Extended run times and reduced cycle times make the Series 5195 an efficient material handling solution. Linde’s cushioned hydraulic system allows for delicate handling of any load, increasing operator efficiency while helping to guard from product damage.

Controlled acceleration, smooth maneuvering and responsive braking are all active functions for travel including cushioned hydraulic functions. Variable steering resistance gives the reassuring feeling of maintaining perfect control of the truck while the truck status is continuously monitored on an informative display. At a glance, the operator can check steering angle, battery state, operating hours, motor temperature or servicing due.

  • The Multifunction Control Handle’s unique design, shape and angle reduce hand movement
  • Simultaneous control of travel and hydraulic functions are fully proportional
  • Mast functions and hydraulic functions are cushioned and proportional
  • Forward or reverse steering is available
  • Auto deceleration is adjustable
  • Load cushioning is built into the reach and retract cylinders
  • Adjustable armrest
  • Programmable multifunction handle to match operator performance

Linde Li-ION batteries for forklift trucks and warehouse equipment improve operation and handling. They increase vehicle availability and make operation more economical, safer and more sustainable. Many users appreciate the practical advantages in their day-to-day work.



  • Increased Sustainability
  • Reduced Charging Time By 70%
  • Low Operating Cost
  • Longer Run Time

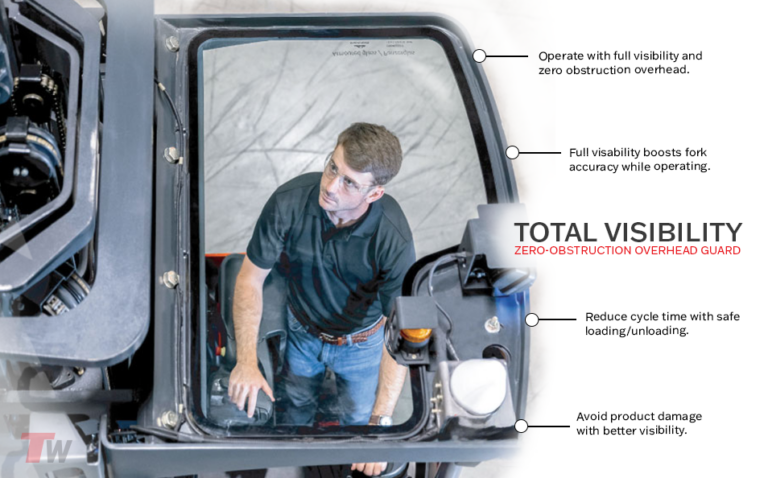

Comfort and Visibility in all load handling functions are enhanced with a clear view overhead guard. The operator does not have to lean outside the frame of the truck to see loads at extended heights. Linde’s glass overhead guard provides an operator with zero obstructions while looking through the overhead guard. This increases fork accuracy, and in turn, decreases cycle time and product damage.

The InnovativeLinde BlueSpot™ driving path warning system minimizes risk without making a sound.

  • Driving path warning system: Increasing safety in aisles and at crossings with poor visibility
  • Early warning: A spot on the ground well ahead of the truck leaves plenty of time to move out of the way
  • LED technology: Anti-glare, high-intensity light using low levels of energy
  • Long service life: Very low operating temperature
  • Durability: Resistant to shaking, vibrations, and high-pressure cleaning
  • Diversity: LED light with a red or blue light spot or a blue arrow
  • Well-received by drivers and pedestrians: No need for disruptive acoustic warning signals

Linde understands narrow aisle applications. The result, over 70 years of designing and manufacturing the most reliable forklift trucks in the industry. At any location across the globe, you will see a Linde forklift operating in any environment. Extensive testing and design result in the most efficient electric trucks in the market. Cutting-edge technology leads to a competitive edge. Linde warehouse products are recognized as the highest potential cost of operation gains in the industry.

Work Assistance Accessories are designed to make operators’ jobs easier and more effiencient, with many options to help keep frequently-used tools and accessories like laptops, clipboards or Linde Connect (pictured) close at hand.

With a service door that opens well beyond 90 degrees, a technician has full and easy access to all necessary componentry, allowing for the truck to get back in service faster. The service compartment allows full access to the main components with a service door that fully opens. On-board diagnostics allow Linde technicians to quickly and effectively check and address truck systems.



Competitive Rates

Available for Rent, Lease, and Sale

Total Warehouse has a massive rental fleet ready to be delivered to your business at a moment's notice. We offer daily, weekly, and monthly rental rates that allow you to maximize operations at the bare minimum cost. We have you covered with the top material handling products for operational optimization that is customized to your specific needs.

ModelCapacity (lbs)Load Center (in)Voltage BatteryTurning Radisu (in)
R15SXD_51953000243672.4
R17SX_51953500243672.5
R22SX_51954500243671.8

Operator Tailored

Performance

Controlled acceleration, smooth maneuvering and responsive braking are all active functions for travel including cushioned hydraulic functions. Variable steering resistance gives the reassuring feeling of maintaining perfect control of the truck while the truck status is continuously monitored.

  • Simultaneous control of travel and hydraulic functions are fully proportional at a glance, the operator can check steering angle, battery state, operating hours, motor temperature, and servicing due.
