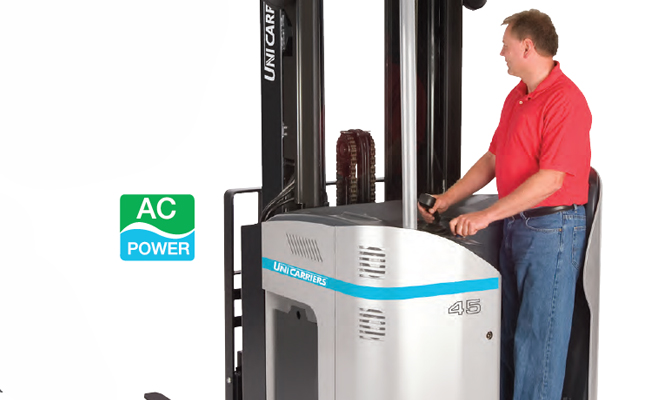

UniCarriers SRX

Standup Reach Forklift

Navigating narrow aisles. Expanding available space. Quickly moving, staging and storing heavy loads. And doing it all with maximum efficiency, operating ease, and operator comfort is what defines the Platinum® SRX Series. With its rugged, proven design, the SRX delivers greater uptime and is intuitive to operate and easy to service. With its multiple performance settings, a wide range of options, and variable capacities, the SRX can be custom-tailored to meet your specific needs.

  • Lifting Heights from 15 to 28’
  • Capacity: 4,500 LBS
  • Smooth operation
  • built-in thermal sensors
  • stationary steer motor
  • Hall Effect sensors
  • vibration isolators
  • ergo-design joystick
  • Ergonomically Sculpted Ca
  • Accepts Multiple Attachments

Increase Storage Density

Performance Without Compromise

The Stand Up SRX reach truck delivers the best performance in the reach truck industry at a very low cost of ownership. Stand up reach trucks are the most efficient units to utilize in Pallet Storage systems so you can maximize your storage per sq ft and put away or retrieve products in minimal time. These units come with the most efficient electrical systems so you can operate longer per charge and work in a variety of environments. We stock these in a variety of sizes and ages so you can have the best unit for your application at the lowest cost.

Check Our New & Used Inventory

Everything you need

The SRX features Flex Logic Controlled Handling, Regenerative Braking System, Fastest Travel & Lift Speeds and 18 Hour Cycles. UniCarriers included on-demand electronic power steering with tiller control, a multi-function control handle and an adjustable operator backrest cushion. Production is optimized with this forklift thanks to its 90° operator side stance with low step height, anti-fatigue arm, knees and back padding.

Check Our New & Used Inventory

Single & Double Reach Trucks

Greater Uptime

The SRX Series' AC motor and controller system features MOS-FET power inverters for DC to three phase AC power conversion. Thermal sensors help protect both motors and controller against overheating. Warning indicator will advise operator if overheating has occurred, followed by reduced operations. Data is automatically locked into truck’s service history to assist the technician.

frequently asked questions

Reliability is the key to bringing your operation greater productivity and profits. That’s why the SRX is engineered and built to deliver maximum uptime – all the time. From its simple design to its high performance components, you’ll find the SRX is engineered to reliably move your business forward.

Unicarriers SRX

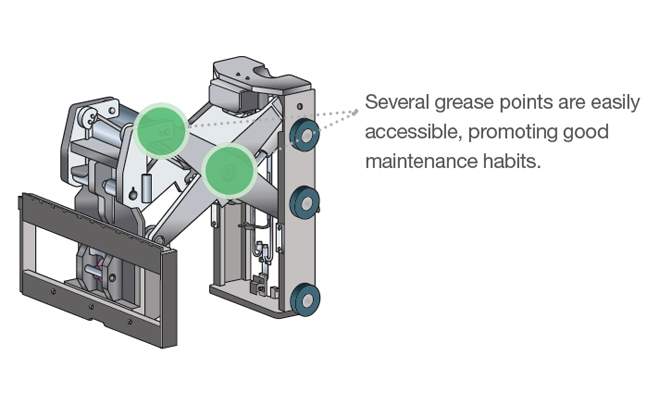

Unicarriers SRX Simple Maintenance

The SRX reach mechanism incorporates canted roller bearings that travel within the bounds of the mast’s “I” beam inner rails. As the mast extends, these angled bearings remain fully nested inside the mast channel. As a result, the entire carriage assembly is extremely rigid within the tapered mast railing design, producing superior capacity retention at higher lift heights.

With this standard feature, operators experience a quicker response to their steering commands while the SRX is traveling at a faster rate. This control also allows operators to perform operations using slower, more precise movements when driving at a slower speed, such as negotiating aisles or racking.

Unicarriers SRX Speed Sensing Steer Control

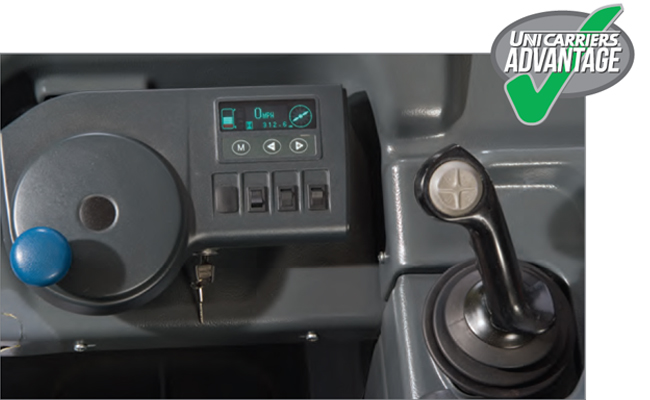

Unicarriers SRX Ergonomics

The SRX Series offers a variety of operator conveniences for greater productivity including a low step height, resulting in less fatigue due to frequent entry/exit from the truck. Its open compartment design includes a wrap-around console with integrated clipboard holder and storage cup. A side stance design provides comfortable forward or reverse driving, and includes a gently sloped floorboard, for a relaxed driving position. The operator platform includes a wide, dual-pedal system for greater operator control. (Brake release pedal is on the left, with an operator presence pedal on the right.)
